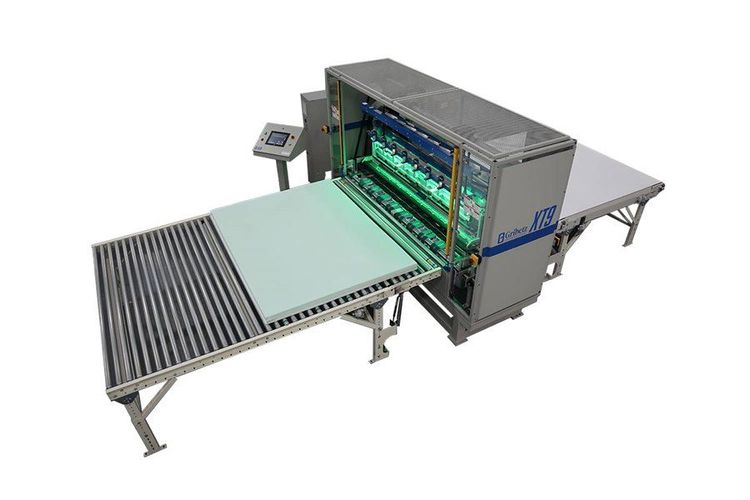

XT9 Chain Stitch Quilter

• Description: Sew together mattress comfort layers for less than 5% of the cost of glue methods. The XT9 can sew sheets together for a low cost worth of thread in comparison to the adhesives commonly used within the bedding industry. The XT9 replaces expensive, messy gluing methods with clean, inexpensive stitching. A set of nine long needles penetrate up to four inches of layered materials, combining it all in a single pass through the machine in about 35 seconds.

• Features and benefits:
  - XT9 provides single-pass assembly.
  - Hot-melt and water-based gluing process requires multiple passes to create assembly.
  - In addition, water-based requires a heat machine or time for water to evaporate.
  - Both glue processes require a press for glue transfer to create a bond.
  - XT9 eliminates these additional steps and machines
  - XT9 maintains the desired integrity of your product, intended comfort.
  - Hot-melt and water-based bonding process alters the desired ""feel and comfort"" of your product by creating a laminated/stiff product.
  - XT9 allows your layers to ""float"" individually, giving the intended ""feel and comfort"" of each individual layer.
  - Gluing eliminates airflow and creates a vapor barrier.
  - XT9 provides a ""cooling"" airflow with no vapour barrier through stitched layers.
  - XT9 creates an environmentally friendly and recyclable product.
  - Glued layers are created with chemicals; XT9 uses thread.
  - Glued layers are difficult to separate for recycling; XT9 layers can be separated by removing the thread.
  - Here's how it works:
  - Gravity conveyor feeds stacked foam layers into XT9.
  - Electric eyes detect material height and adjust automatically to fit.
  - Rubberized belts advance the material in coordination with the needle stoke.
  - Needle and looper threads are trimmed.
  - Motorized belt conveyor discharges the completed sewn-layered unit.

• Specifications:
  Model: XT9Max sewing speed: 2200 rpmRecommended sewing speed: 2000 rpmNeedle spacing: 229 mmNeedle type: 794 Series Gribetz SpecNeedle size: 180/24Number of loopers: 9Needle Height: 7.94 mmVoltage/Phase: 208V/460V, 3 PhaseCurrent: 50/25 amps (Depending on Voltage)Air pressure: 6.2 barAir consumption: 33 L/minMax material width: 2159 mmMin material width: 1829 mmMax thickness: 102 mmMin thickness: 19mmProduction units: 1 queen/35secFootprint (L x W): 6629 mm x 3810 mmWeight: 3829 kgShipping dimensions (L x W x H): 3150mm x 1450mm x 1900mm

• Documents:
  XT9-Chainstitch-Quilter.pdf
